Specifications
| Specification | Value |
|---|---|
| Frame Material | One-piece lightweight SLP graphite |
| Sideplates | SLP graphite |
| Drain ports | Three |
| Bearing count | 8-bearing system |
| Bearing type | Stainless steel double shielded bearings |
| One-way clutch | Zero Reverse one-way clutch |
| Gear material | High strength solid brass Speed Gear |
| Gear machining | Precision Hamai CNC gear hobbing machines |
| Braking system | Externally-adjustable Multi-Setting Brake (MSB) dual cast control system |
| External brake control | External click-dial for the magnetic brake |
| Internal brake shoes | Four individually disengageable disk-mounted internal brake shoes |
| Internal brake operation | Centrifugal force |
| Spool | Machine forged, double anodized aluminium 32mm deep spool |
| Drag star | Double anodized aluminium drag star with audible click |
| Drag system | Rulon drag system |
| Max drag | 15lbs |
| Handle | 95mm bowed anodized aluminium handle |
| Handle grips | Lew's Combat Grip paddles |
| Spool tension cap | Double anodized aluminium spool tension cap with audible click |
| Gear Ratio | 7.5:1 |
| Weight | 206.9g |
| Casting Weight | 4 - 60g |
Description

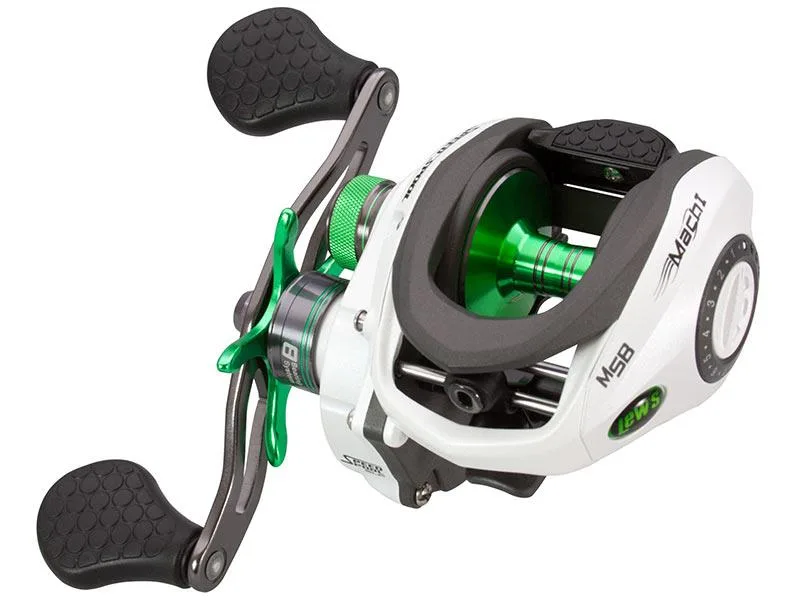

The Lew's Mach 1 SLP baitcaster is built around a one-piece lightweight SLP graphite frame and sideplates with three drain ports. Its 8-bearing system uses stainless steel double shielded bearings along with a Zero Reverse one-way clutch, and the high strength solid brass Speed Gear is cut on precision Hamai CNC gear hobbing machines. Braking comes from the externally-adjustable Multi-Setting Brake (MSB) dual cast control system, which combines an external click-dial for the magnetic brake with four individually disengageable disk-mounted internal brake shoes that operate on centrifugal force. The machine forged, double anodized aluminium 32mm deep spool is paired with a double anodized aluminium drag star with audible click, and the Rulon drag system provides up to 15lbs of drag power. A 95mm bowed anodized aluminium handle with Lew's Combat Grip paddles and a double anodized aluminium spool tension cap with audible click complete the build. - Gear ratio: 7.5:1 - Weight: 206.9g - Casting weight: 4 - 60g
Product options and codes
| Option | Product code |
|---|---|
| Lew's Mach 1 SLP - Right Hand | MH1SHA-FX |
