Specifications
| Specification | Value |
|---|---|
| Frame Material | Graphite frame |
| Side plates | Aluminium reinforced graphite side plates |
| Spool Material | Forged aluminium spool |
| Braking system | Indexed magnetic braking system |
| Bearings | 6 stainless steel shielded bearings |
| Anti-reverse bearing | Instant anti-reverse bearing |
| Drag system | HT-100 powered drag system |
| Main and pinion gear | Stainless steel main and pinion gear |
| Reel Size | 515 |
| Drag Type | Star Drag |
| Gear Ratio | 6.1:1 |
| Bearing Count | 7 |
| Max Drag | 15lb | 6.8kg |
| Packaging | Box |
| Mono Capacity yd/lb | 270/12 230/15 160/20 |
| Mono Capacity m/mm | 250/0.35 215/0.38 145/0.46 |
| Reel Handle Position | Right |
| Colour | Black/Red |
| Anti-Reverse Feature | Instant Anti-Reverse |
| Pre-Spooled yd/lb | Not Pre-Spooled |
| Retrieve Rate | 29" | 74cm |
| Drag Material | HT-100 |
| Braking System | Magnetic |
| Reel Spool Material | Aluminum |
| Spare Spool Material | No Spare Spool |
| Braid Capacity yd/lb | 525/15 430/20 320/30 |
Description

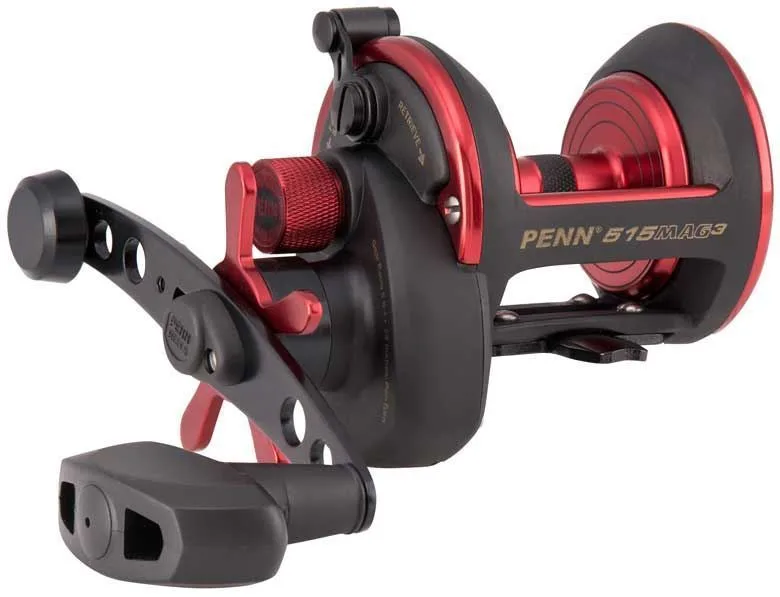

The Penn 515 Mag3 is a star-drag multiplier reel built around a graphite frame with aluminium-reinforced graphite side plates. It uses a forged aluminium spool and an indexed magnetic braking system, which helps control spool speed during the cast. Internally it runs on six stainless steel shielded bearings plus an instant anti-reverse bearing, with a stainless steel main and pinion gear and the HT-100 drag system. - Graphite frame and aluminium reinforced graphite side plates - Forged aluminium spool - Indexed magnetic braking system - 6 stainless steel shielded bearings - Instant anti-reverse bearing - HT-100 powered drag system - Stainless steel main and pinion gear - Reel Size: 515 - Drag Type: Star Drag - Gear Ratio: 6.1:1 - Bearing Count: 7 - Max Drag: 15lb | 6.8kg - Packaging: Box - Mono Capacity yd/lb: 270/12 230/15 160/20 - Mono Capacity m/mm: 250/0.35 215/0.38 145/0.46 - Reel Handle Position: Right - Colour: Black/Red - Anti-Reverse Feature: Instant Anti-Reverse - Pre-Spooled yd/lb: Not Pre-Spooled - Retrieve Rate: 29" | 74cm - Drag Material: HT-100 - Braking System: Magnetic - Reel Spool Material: Aluminum - Spare Spool Material: No Spare Spool - Braid Capacity yd/lb: 525/15 430/20 320/30
Product options and codes
| Option | Product code |
|---|---|
| Penn 515 Mag3 | 1424544-PF |
