Specifications
| Specification | Value |
|---|---|
| Body Material | Full Alumilite aluminium body, sideplate and rotor |
| Waterproof rating | Full IPX7 waterproof rating |
| Submersion | Submersion in 1 metre of water for up to 30 minutes |
| Drag system | Carbonite high-output Dual Force Drag system |
| Drag application | Applies pressure to both the top and bottom of the spool |
| Drag rating | 25kg |
| Main gear | Oversized, precision machine-cut brass main gear |
| Gear design | Gearing Stabilization Design that supports the pinion gear |
| Gear Ratio | 4.9:1 |
| Bearing system | 12HPB + 1RB corrosion-resistant stainless steel bearing system |
| Bail wire | One-piece solid aluminium bail wire |
| Spool shaft | Oversized titanium spool shaft |
| Bearings | 12BB + 1RB |
| Weight | 714g |
| Line Capacity (mm/m) | 0.40/370, 0.45/290, 0.50/230 |
| Max Drag Force | 25kg |
| Line Retrieval per Turn | 105cm |
| Body and side plate | Full-Alumilite |
| Drag grease | Cal's Drag Grease on Full Dual Force Drag |
| Anti-reverse system | Dual Anti-Reverse System |
| Handle arm | Machined Aluminum Screw-In Handle Arm |
| Gearing | Smooth Machine-Cut Brass Gearing with an Over-Sized Drive Gear |
| Main shaft design | Frictionless Main Shaft Design |
| Model | TSR-8000PA |
| Retrieve | Reversible |
| Model | TSR-14000PA |
| Model | TSR-18000PA |
| Model | TSR-10000PA |
Description

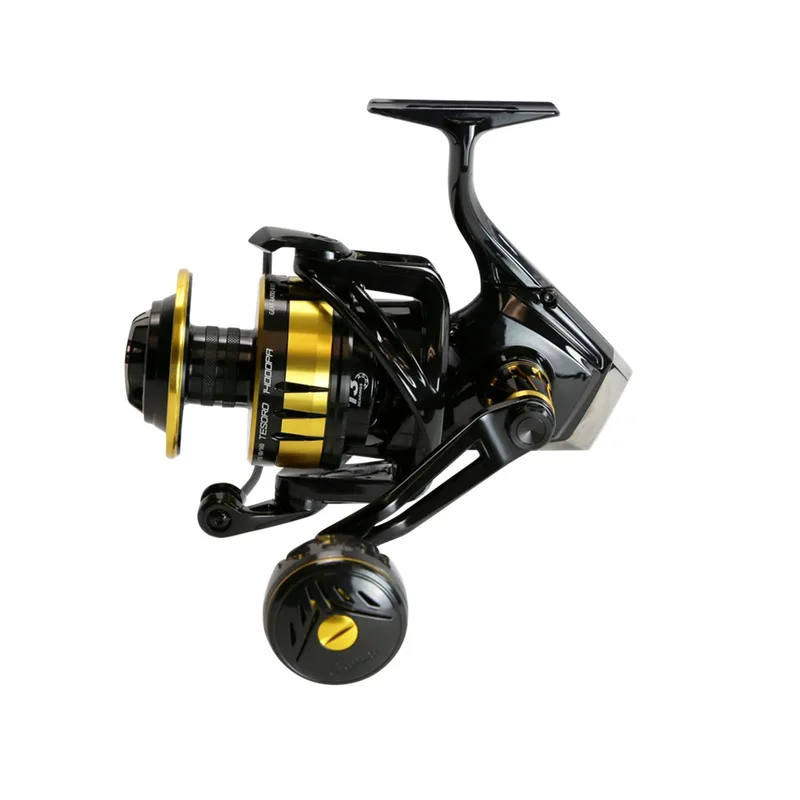

The Okuma Tesoro Long Cast Reel is a heavy-duty spinning reel built for demanding saltwater fishing. It combines power, durability and smooth, consistent performance, making it a strong option for UK shore and boat anglers targeting hard-fighting species. The reel is built with a full Alumilite aluminium body, sideplate and rotor. This construction is stronger and more rigid than traditional graphite or magnesium, keeping the internal components, particularly the gears, in alignment under extreme pressure for maximum cranking power and durability. A full IPX7 waterproof rating means the body is sealed against water ingress and can withstand submersion in 1 metre of water for up to 30 minutes. This protects the reel from heavy rain, breaking waves and accidental drops in the sea. The Carbonite high-output Dual Force Drag system applies pressure to both the top and bottom of the spool, maximising drag output and producing a smooth, consistent drag curve. Drag is rated at 25kg, giving the stopping power needed for hard-running fish such as big cod, smooth-hounds or small sharks. An oversized, precision machine-cut brass main gear is paired with a Gearing Stabilization Design that supports the pinion gear for added stability and durability. The low-speed 4.9:1 gear ratio delivers immense cranking power, making it easier to retrieve heavy leads and rigs from distance or winch a large fish up from deep water. The reel runs on a 12HPB + 1RB corrosion-resistant stainless steel bearing system, designed to be more resistant to saltwater than standard bearings. A one-piece solid aluminium bail wire and an oversized titanium spool shaft add further strength and durability. - Gear Ratio: 4.9:1 - Bearings: 12BB + 1RB - Weight: 714g - Line Capacity (mm/m): 0.40/370, 0.45/290, 0.50/230 - Max Drag Force: 25kg - Line Retrieval per Turn: 105cm - Full-Alumilite Body and Side Plate - Carbonite High-Output Drag with Cal's Drag Grease on Full Dual Force Drag - 12HPB + 1RB Corrosion-Resistant Stainless Steel Bearings - Dual Anti-Reverse System for Maximum Strength and Reliability - Machined Aluminum Screw-In Handle Arm for Added Strength - Smooth Machine-Cut Brass Gearing with an Over-Sized Drive Gear - Gearing Stabilization Design for Gear Alignment - Frictionless Main Shaft Design - Oversized Titanium Spool Shaft for Maximum Strength-to-Weight Ratio - Model: TSR-8000PA - Retrieve: Reversible - Gear Ratio: 4.9:1 - Weight: 697g - Max Drag: 25kg - Bearings: 12+1 - Line Capacity: 0.40/230, 0.45/180, 0.50/140 - Model: TSR-14000PA - Retrieve: Reversible - Gear Ratio: 4.9:1 - Weight: 714g - Max Drag: 25kg - Bearings: 12+1 - Line Capacity: 0.40/370, 0.45/290, 0.50/230 - Model: TSR-18000PA - Retrieve: Reversible - Gear Ratio: 4.4:1 - Weight: 928g - Max Drag: 25kg - Bearings: 12+1 - Line Capacity: 0.50/320, 0.55/260, 0.60/215 - Model: TSR-10000PA - Retrieve: Reversible - Gear Ratio: 4.4:1 - Weight: 714g - Max Drag: 25kg - Bearings: 12+1 - Line Capacity: 0.40/290, 0.45/220, 0.50/175 The combination of the Alumilite body and IPX7 sealing makes the reel highly resistant to the corrosive effects of saltwater, able to handle the spray, sand and knocks common on the shore. The 4.9:1 low gear ratio and 25kg drag suit the UK's hardest-fighting species, whether fishing for a big cod in a strong tide or a powerful smooth-hound. The bearing system and precision gearing keep operation smooth over long sessions, and the low-speed retrieve puts more power through each turn with less strain on the angler. Because the body is sealed, the reel can be used in heavy rain, big surf or from a wet boat deck with confidence that the internal components are protected.
Product options and codes
| Option | Product code |
|---|---|
| 14000Pa SP Low Speed | 142196 |
