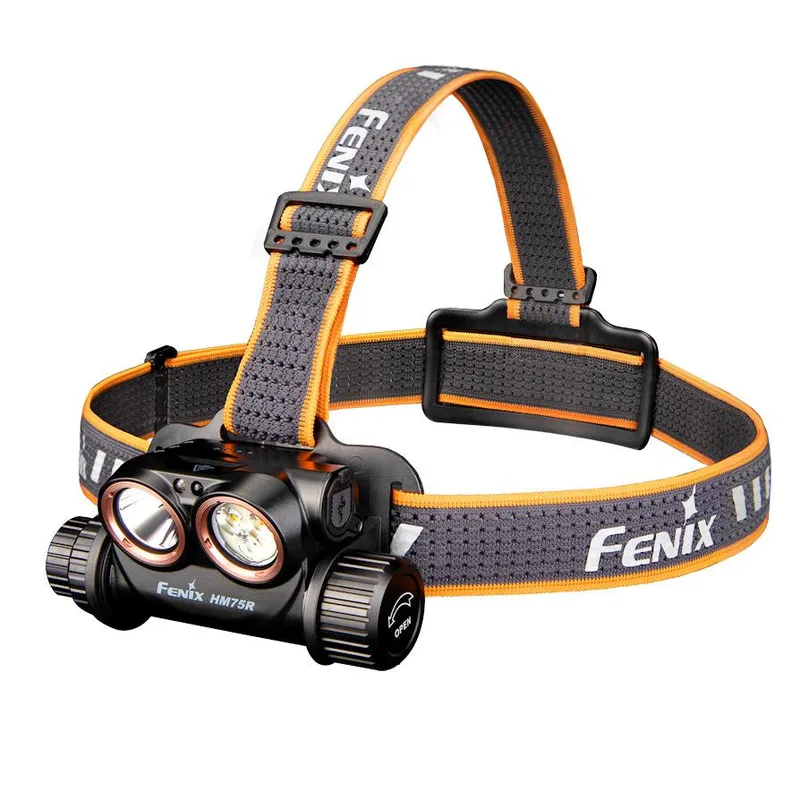

Specifications for Fenix HM75R SE Headlamp
Specification	Value
Body Material	Magnesium alloy
Main beam output	1600 lumen
Floodlight output	1000 lumen
Red light output	120 lumen
Battery	Replaceable 3400 mAh 18650 Li-ion battery
Charging port	USB-C port on the side of the head unit
Switch type	Metal rotary switch
Brightness control	Central push button
Proximity sensor	Reduces output when the light is placed very close to an object, or if it is accidentally switched on inside a backpack
Proximity sensor switch-off	Can be switched off
Spotlight Low output	50 lumens
Spotlight Low runtime	50 hrs 50 min
Spotlight Low beam	39m
Spotlight Med output	350 lumens
Spotlight Med runtime	11 hrs
Spotlight Med beam	101m
Spotlight High output	800 lumens
Spotlight High runtime	3 hrs 30 min
Spotlight High beam	158m
Spotlight Turbo output	1600 lumens
Spotlight Turbo runtime	1 hr 30 min
Spotlight Turbo beam	223m
Floodlight Low output	5 lumens
Floodlight Low runtime	100 hrs
Floodlight Low beam	5m
Floodlight Med output	150 lumens
Floodlight Med runtime	8 hrs
Floodlight Med beam	25m
Floodlight High output	400 lumens
Floodlight High runtime	4 hrs
Floodlight High beam	43m
Floodlight Turbo output	1000 lumens
Floodlight Turbo runtime	1 hr 50 min
Floodlight Turbo beam	60m
Red light Low output	5 lumens
Red light Low runtime	110 hrs
Red light Low beam	4m
Red light Med output	30 lumens
Red light Med runtime	32 hrs
Red light Med beam	9m
Red light High output	120 lumens
Red light High runtime	5 hrs 20 min
Red light High beam	16m
Red light Flash output	5 lumens
Red light Flash runtime	220 hrs
Construction	Light weight magnesium construction
Switch operation	Dual switch operation, 1 x rotary switch + 1 x push button
Battery indicator	4 level indicator giving a clear reading of battery status
Charging port waterproofing	Inner waterproofing
Charge time	4 hr
Backup power source	2 x CR123 non rechargeable batteries
Proximity sensor distance	50mm
Headband	Breathable, detachable headband with reflective strips
Head adjustment	Tilt adjustable head for perfect beam alignment
Water and dust rating	IP68 Rated - Dust and water proof. Submersible up to 2 metres for 4 hours
Impact resistance	2m
Over temperature protection	60c

Description

The Fenix HM75R SE is an industrial head torch built around a compact magnesium alloy head unit. It combines a 1600 lumen main beam, a 1000 lumen floodlight and a 120 lumen red light, powered by a replaceable 3400 mAh 18650 Li-ion battery that charges through a USB-C port on the side of the head unit. Operation is straightforward: a metal rotary switch selects the mode, and a central push button adjusts brightness. A proximity sensor reduces output when the light is placed very close to an object, or if it is accidentally switched on inside a backpack, and this sensor can be switched off. Spotlight mode (ARB-L18-3400 internal battery): - Low: 50 lumens (50 hrs 50 min) - 39m beam - Med: 350 lumens (11 hrs) - 101m beam - High: 800 lumens (3 hrs 30 min) - 158m beam - Turbo: 1600 lumens (1 hr 30 min) - 223m beam Floodlight mode: - Low: 5 lumens (100 hrs) - 5m beam - Med: 150 lumens (8 hrs) - 25m beam - High: 400 lumens (4 hrs) - 43m beam - Turbo: 1000 lumens (1 hr 50 min) - 60m beam Red light mode: - Low: 5 lumens (110 hrs) - 4m beam - Med: 30 lumens (32 hrs) - 9m beam - High: 120 lumens (5 hrs 20 min) - 16m beam - Flash: 5 lumens (220 hrs) Fenix HM75R SE headlamp features: - Light weight magnesium construction. Excellent heat sinking for extended service life and superior performance at high output - Dual switch operation, 1 x rotary switch + 1 x push button - Battery level / charging indicator - 4 level indicator giving a clear reading of battery status - USB-C charging port with inner waterproofing. 4 hr charge time - Can use 2 x CR123 non rechargeable batteries as a back up power source - Built-in 50mm proximity distance sensor reduces output to prevent heat damage to headlamp and nearby objects (can be switched off) - Breathable, detachable headband with reflective strips - Tilt adjustable head for perfect beam alignment - IP68 Rated - Dust and water proof. Submersible up to 2 metres for 4 hours - 2m impact resistant - Over temperature protection at 60c
